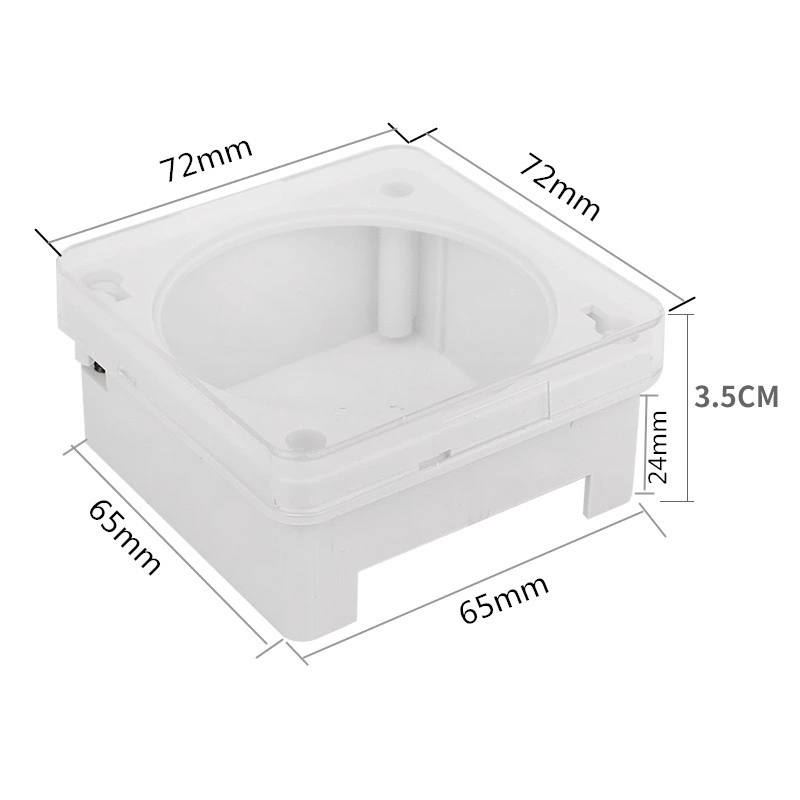

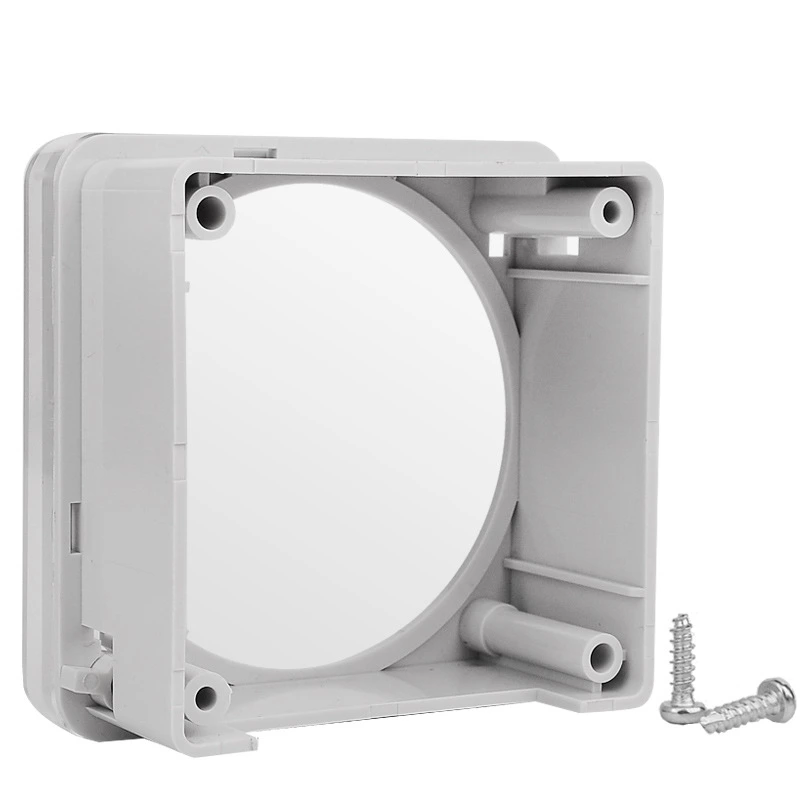

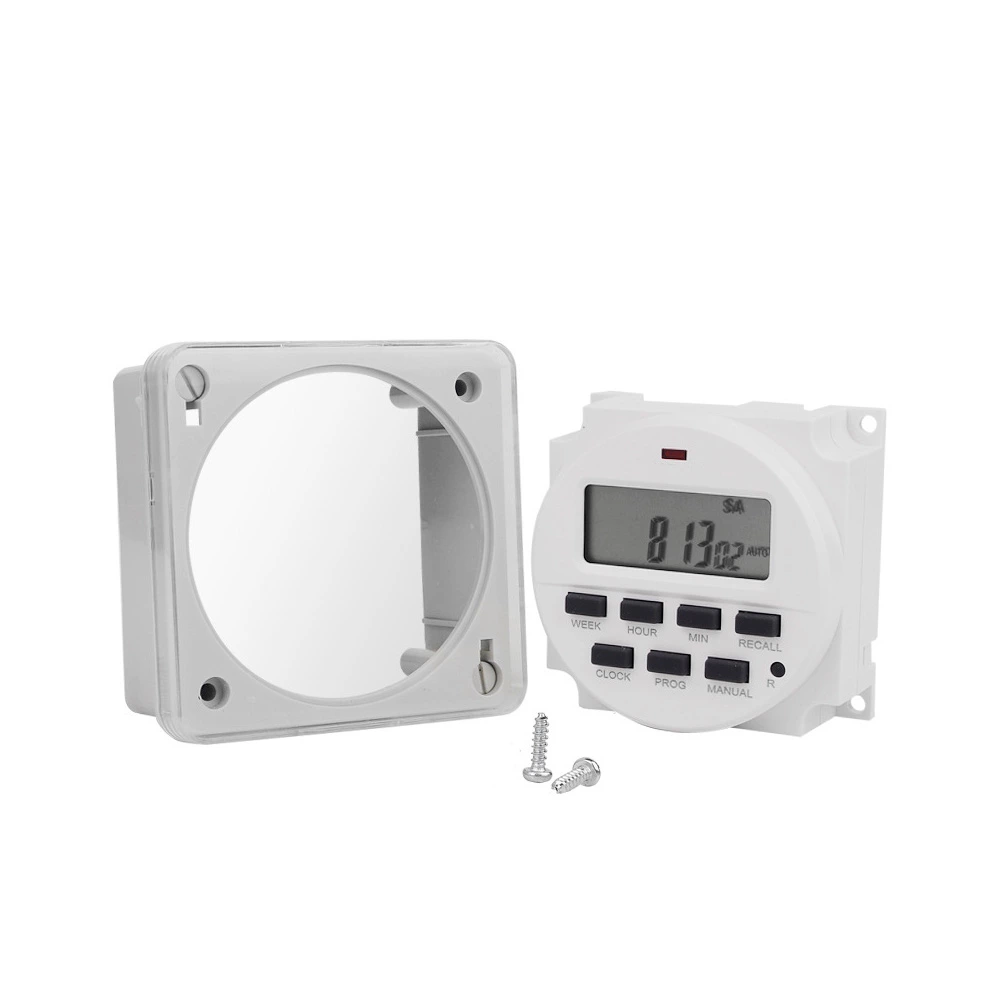

Timing Switch Mounting Frame

Customization:
Available
Working Voltage:
220-240VAC 50~60Hz
Protection:
Waterproof
Internal Battery:
1.2V40mA(Rechargeable Battery
Mounting Way:
Panel Mount Digital Timer
Display Device:
LCD
Timing Range:
1 Minutes to 168 Hours
Time Error:
≤1s/24h 25ºC

Features:

100% Brand New and High Quality

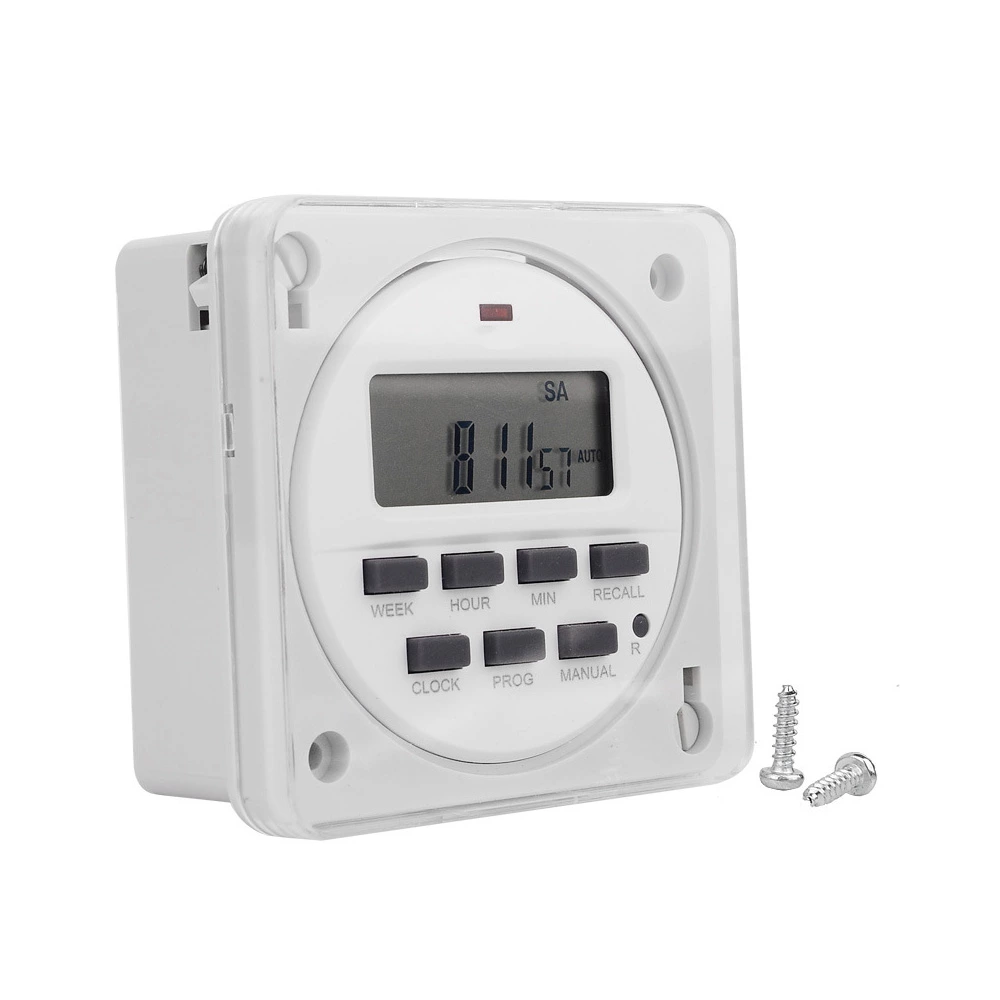

The panel-mount digital timer series can be operated in 4 separate power supplies, ranges from 240V AC to 12V DC,output format can be produced to be volt-free or voltaic-output

The digital timer is accurate to the minute, hour, days, designed with either 17 ON/OFF (event) per day

Provide 15 combination of daily programs which can lead great convenience to user upon choosing the required days in a week for operation the time

Advanced pre-setting one week before, digital electronic timer switch with daily and weekly programs

Repeat programs with 17 on/off setting and manual override lithium battery power reserve when electric supply cut off

Regular Voltage:  220V/50-60Hz

OEM Voltage:  12V,24V,36V,48V,110,380V/50-60Hz DC

Control output:  16A,It can also be expanded to control the use.

Setting times:  17 times (day/week)

Setting time:  1 minute to 168 hours

Error:  1s/24h

Power failure memory:  180days (built-in 1.2V chargable battery)

Outside dimension:  60x60x32mm

Voltage Range 220V 50Hz   on off switch
Voltage scope 85%~110%
Capacitance Resistance Load  16A
Consumed power <5VA
Timing Control Range 1min~168h
Timing error <±2s/day(25°C±1°C)
Temperature -10°C~+50°C
Relative Humidity <95%
Dimension 120×72×50mm
Weight 210g
