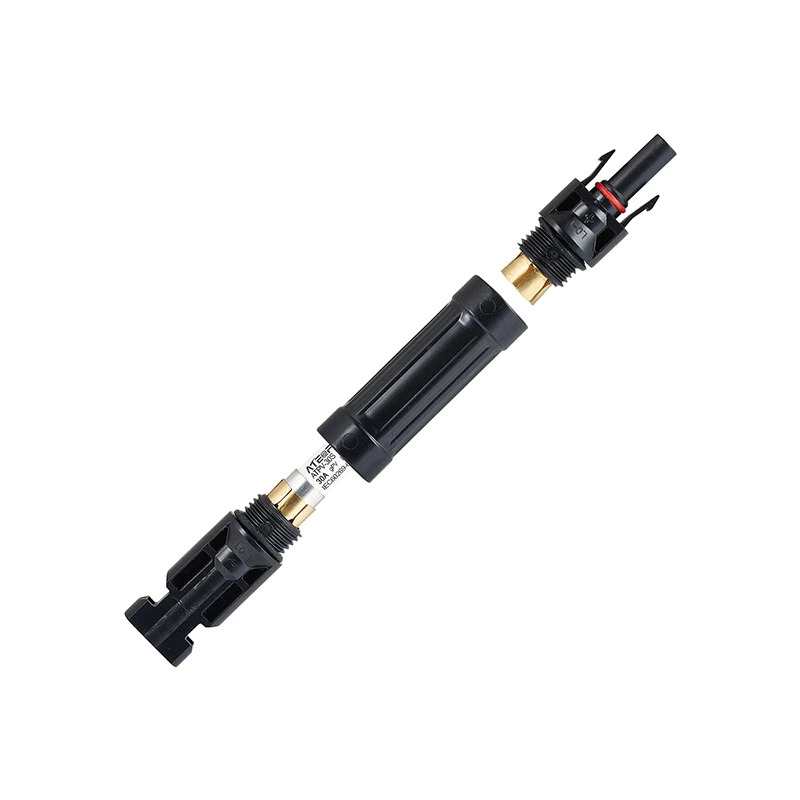

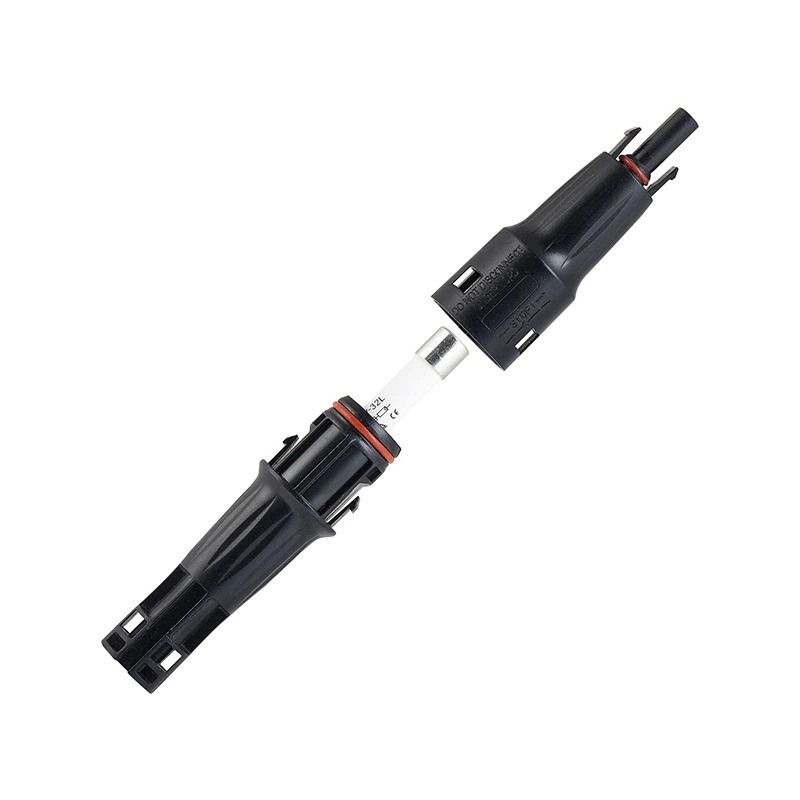

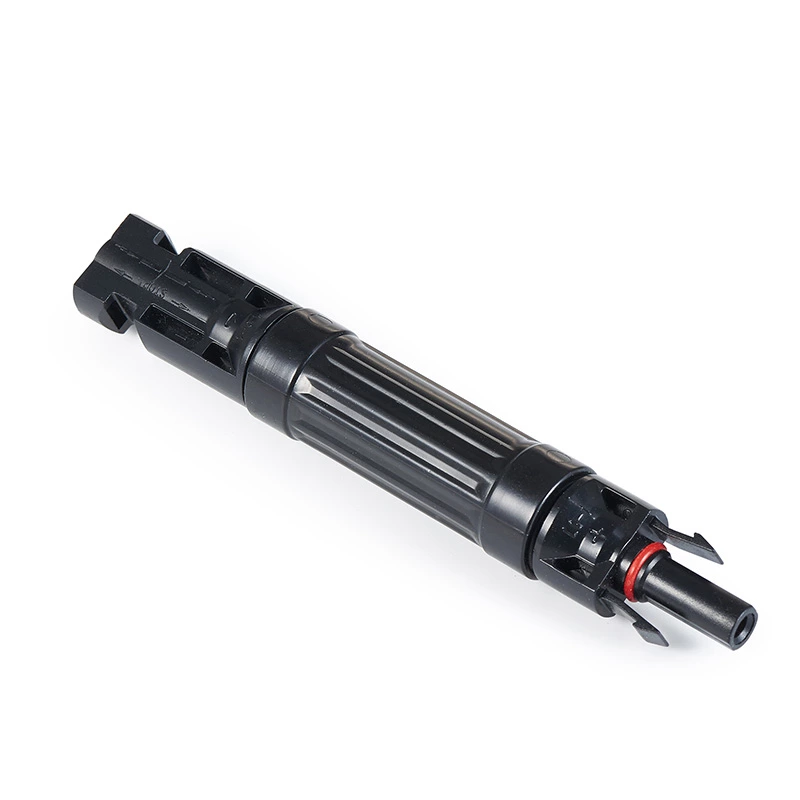

1500VDC MC4 Solar PV In-Line Fuse
- Customization:
- Available
- Material:
- Ceramic
- Function:
- Overcurrent Protection
- Type:
- Solar PV Fuse
- Rated Voltage:
- 1500VDC
- Breaking Capacity:
- Low
- Operating Class:
- Gpv Fuse
- Model:
- Low Voltage Fuse
Product Specifications:
| insulation material: | PPE/PA | Fuse specification: | 1A-50A |
| Rates current(without fuse): | 50A | Safety degree: | II |
| Rated voltage: | 1500VDC | Flame class | UL90-V0 |
| Maximum voltage(with fuse): | 1575V | Ambient temperature range: | -40ºC..+85ºC(IEC) |
| contact resistance: | ≤0.25 mΩ | upper limiting temperature: | 110ºC(IEC) |
| Contact material: | Copper, Tin plated | suitable cable cross sections: | 2.5mm2-10mm2/14awg-8awg(4F1-4F3) |

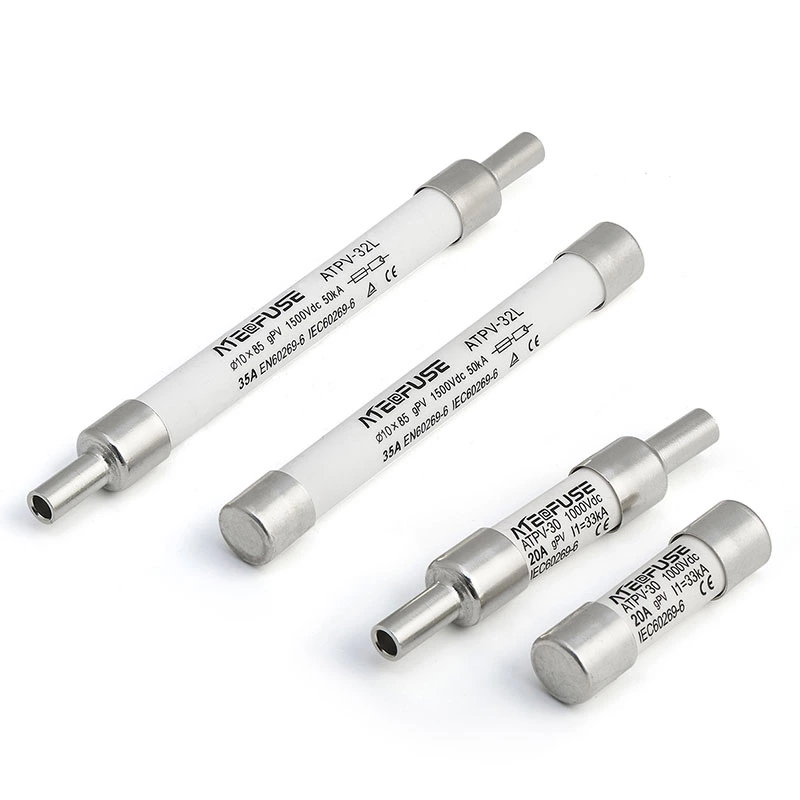

| Degree of protection: | IP68(1m, 1H) | suitable for fuse size(mm): | 10*85 or 10/14*85 |
| Rated Impulse voltage: | 12KV | regulatory approval: | TUV/CE |
| Model | Rated Current (A) | I² T(A² S) | |
| Pre-arcing | Total | ||
| CF-12PV(CFPC-32L) | 2 | 4 | 8 |
| CF-12PV(CFPC-32L) | 3 | 6 | 11 |
| CF-12PV(CFPC-32L) | 4 | 8 | 14 |
| CF-12PV(CFPC-32L) | 5 | 11 | 22 |
| CF-12PV(CFPC-32L) | 6 | 15 | 30 |
| CF-12PV(CFPC-32L) | 8 | 9 | 35 |
| CF-12PV(CFPC-32L) | 10 | 10 | 98 |
| CF-12PV(CFPC-32L) | 12 | 12 | 120 |
| CF-12PV(CFPC-32L) | 15 | 14 | 170 |
| CF-12PV(CFPC-32L) | 20 | 34 | 400 |
| CF-12PV(CFPC-32L) | 25 | 65 | 550 |
| CF-12PV(CFPC-32L) | 30 | 85 | 680 |
| CF-12PV(CFPC-32L) | 32 | 90 | 720 |
