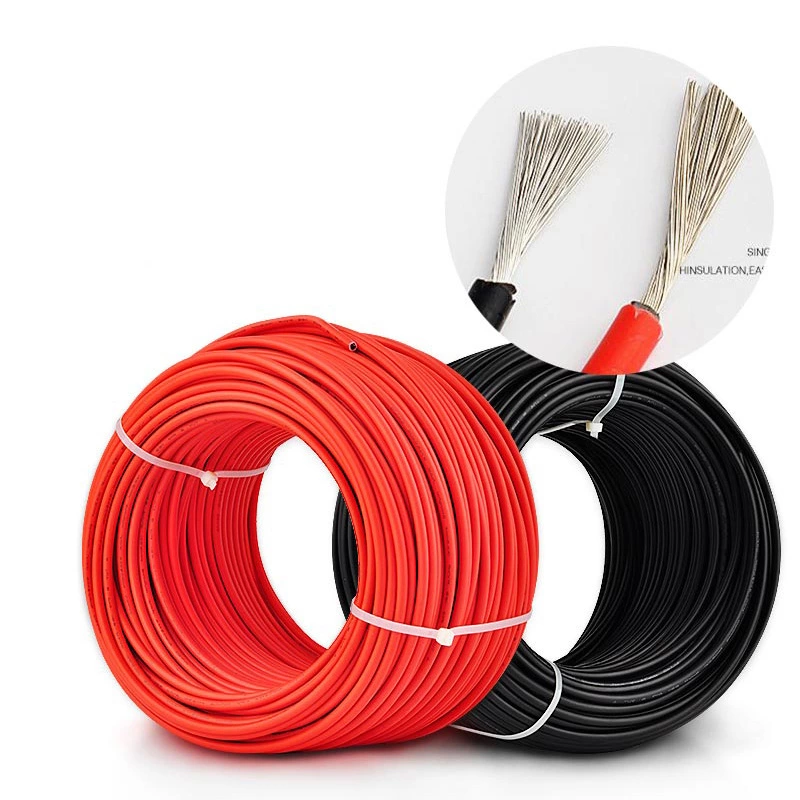

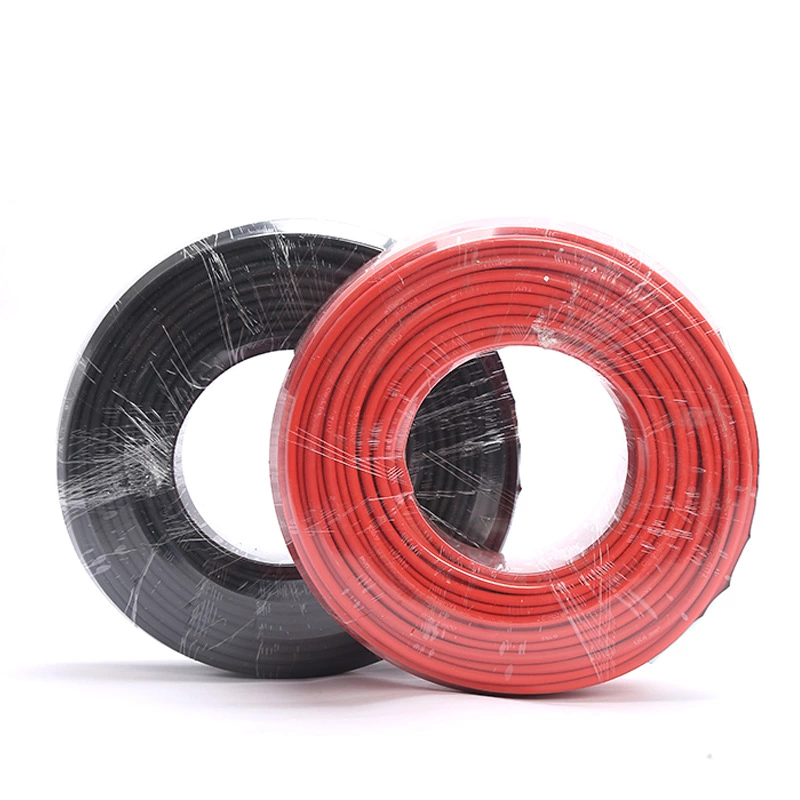

DC Solar PV Cable Wire

Customization:
Available
Color:
According to the requirements of customers
Application:
Industrial/Medical/Automotive/Photovoltaic, energy storage, charging pile, new energy, etc
Type:
Insulated
Conductor Type:
Solid
Material Shape:
Round Wire
Range of Application:
Refractory
Size Range:
Thousands different connectors available

PV wire is rated 600, 1000 or 2000 V, and is suitable for ac and dc systems. This wire is rated 90, 105, 125 or 150°C dry and 90°C wet. PV wire employs 12 AWG - 2000 kcmil stranded aluminum or copper-clad aluminum, or18 AWG - 2000 kcmil stranded copper, tinned copper conductors.

Application:

This versatile single-conductor cable is designed to meet the varying needs of the Solar Industry. Applications include connection to module junction boxes; required cable routing in the balance of system (BOS) integration.

UL Type PV (Photovoltaic) UL 4703, 600V, -40°C to 90°C

Single-Conductor: 2kV • Rated 90°C • RHH/RHW-2 • CSA 1kV RPV-90

Product Description:

Single conductor, insulated and non-integrally jacketed, sunlight resistant, photovoltaic wire rated for 90°C wet or dry, 600V for interconnection wiring of grounded and ungrounded photovoltaic power systems as described in Section 630.31 (And other applicable parts of the National Electric Code (NEC), NFPA 70). Ratings only apply to certain gauge sizes.

Electrical Characteristics:

--Maximum Operating Voltage: 600 VRMS (UL PV)

Physical Characteristics:

--Temperature Rating: -40°C to 90°C

--Conductor AWG: 12 to 2000 AWG

--Conductor Material: Soft Annealed tinned stranded copper, per ASTM B-33 and EN 60228

--Separator: Paper Tape

--Insulation Material: XLPE  Halogen-free, thermoset, polyolefin specifically, designed for maximum, flexibility

--Jacket Material: Sunlight-Resistant PVC  Black, low smoke, non-halogenated, flame retardant, oil, abrasion, chemical and sunlight resistant cross-linked compound meeting UL 44, UL 854

--Min. Bend Radius: 8x Diameter

Physical Characteristics (contd.):

--Applicable Specifications:

UL Type PV (overall) UL 4703 USE-2 Rated (14 AWG & Larger 600V)

UL Type RHW-2 (90°C wet) (14 AWG & Larger per UL)

ROHS Compliant CE

Electrical Performance
Rated Voltage 250V AC
Rated Impulse Voltage 4000V
Rated Current 25A
Contact Resistance ≤10mΩ
Insulation Resistance ≥1000MΩ
Mechanical Capacity
Cable Retention OD:5.5~9.0,F≥80N;   OD:9~12,F≥100N;   OD:12~12.5,F≥120N;
Connector insertion force /Pullout force ≤80N
Connector Insert and pullout frequency 500
Cable Cross Section 2.5~4mm²
Operational Environment
Protection Degree IP68 1m-1H
Ambient Temperature -40ºC~+85ºC
Sealing element 960ºC
Flammability class(Insulator) UL94 V-0
Material
Plastic PA66 and PA66 30%GF
Conductor Copper Alloy with  Ni Plating
Sealing element Silicone
Connecting Screw SUS
