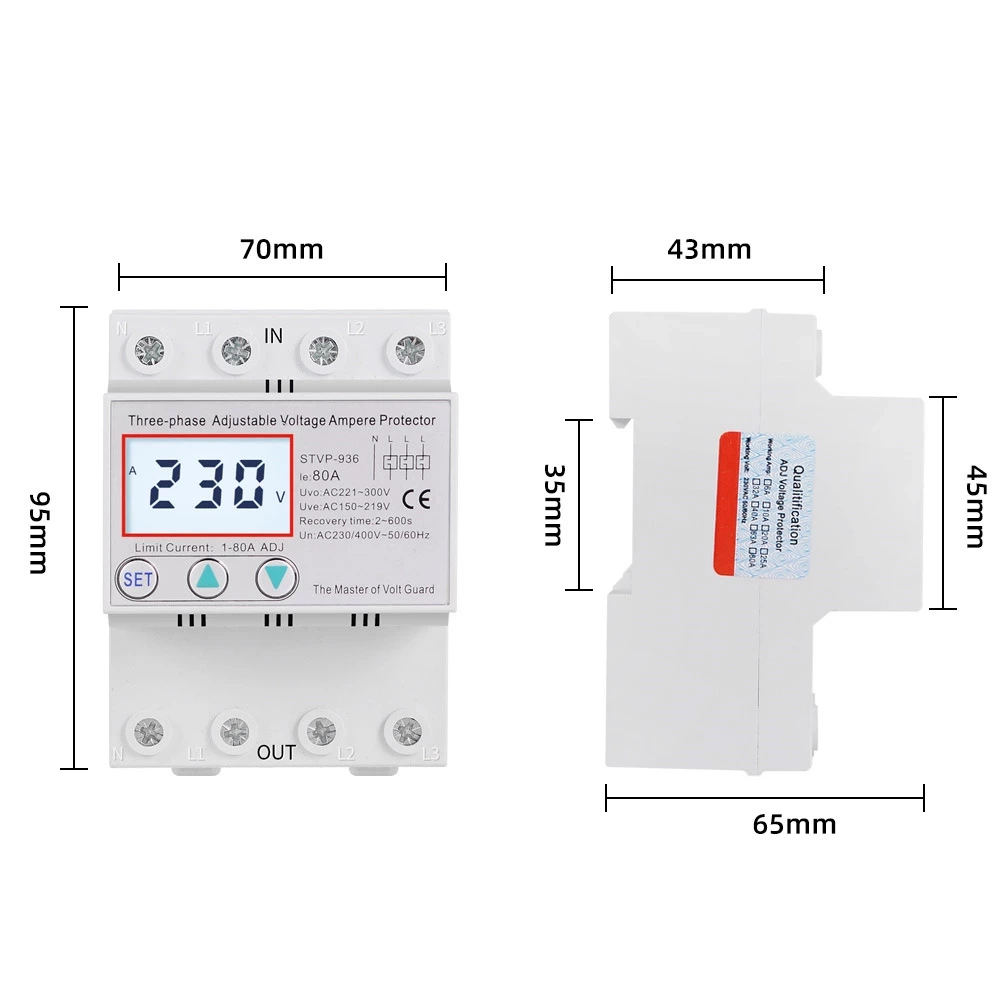

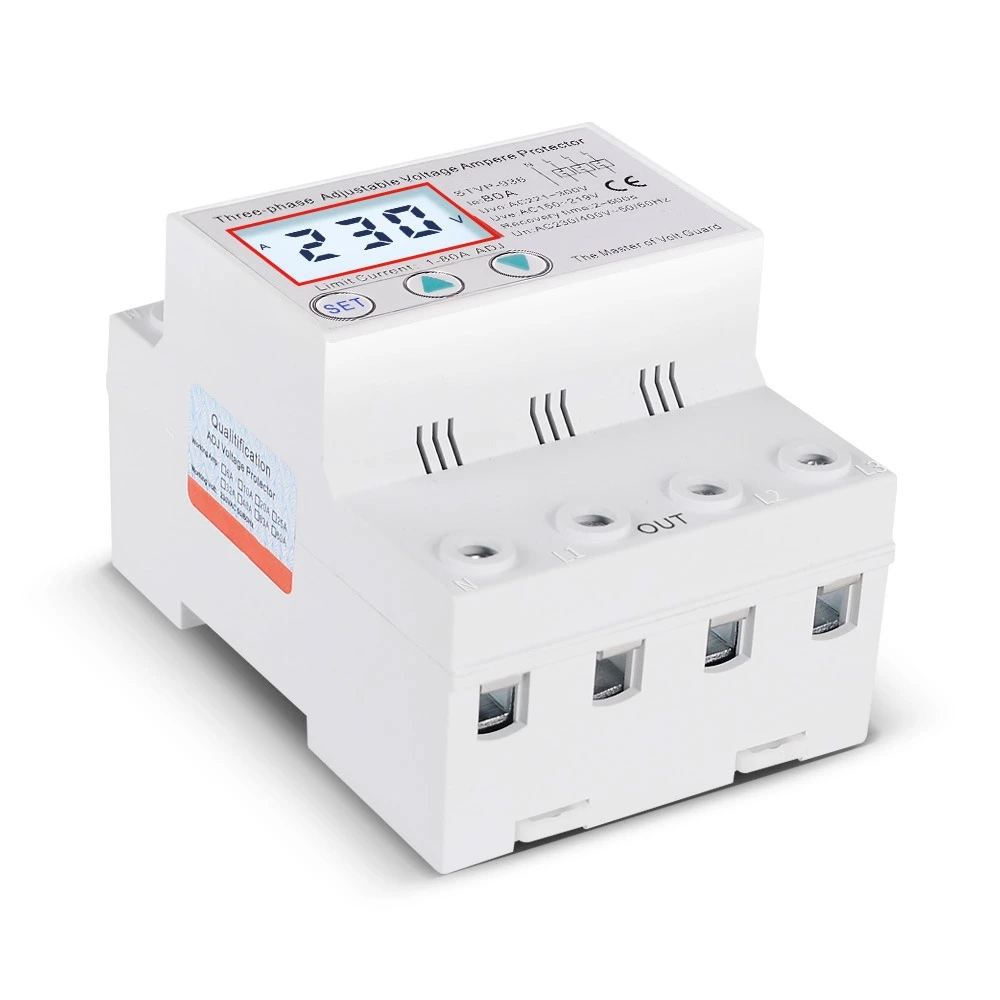

STVP936 3 Phase Self Resetting Intelligent Adjustable Overvoltage and Undervoltage Protector
- Customization:
- Available
- Usage:
- Household Appliances Relay, Communication Relay
- Size:
- Miniature
- Theory:
- Electromagnetic Relay
- UsageVoltage Measuring Error:
- <1%
- Phase Failure and Phase Sequence:
- <1s
- DIN Rail Standard:
- Width 35mm
- Rated Frequency:
- 50Hz/60Hz
Features:
Built-in microprocessor true RMS measurementvoltage measurement accuracy≤ 1%. Knob setting, LED indicator shows working status. Use(magnetic latching) relay to achieve products low-powerDIN-rail mounting.
Applications:
Used in home and villa single-phase control systemwhen the power supply is abnormal(voltage too high or too low),cut off the power to protect electrica equipment from damage.
| Rated supply voltage | AC220V |
| Rated supply frequency | 50Hz/60Hz |
| Contact configuration capacity(A) | 32A,40A,63A,80A Resistive |
| Maximum load power | 7kVA(40A),13kVA(63A),17kVA(80A) |
| Over-voltage action value | 36G:265V 36T:225~265V(Knob setting) |
| Over-voltage reset value | 36G:257V 36T:Over-voltage action value *(97%) |
| Under-voltage action value | 36G:175V 36T:165~215V(Knob setting) |
| Under-voltage reset value | 36G:180V 36T:Under-voltage action value*(103%) |
| Action delay | 36G:0.1S 36T:0.1S~10s(Knob setting) |
| Power on delay | 36G:2s 36T:0.3s~30s(Knob setting) |
| Reset delay | 36G:1s 36T:0.3s-30s(Knob setting) |
| Voltage measurement error | ≤ 1% |
| Delay error | ±10%+0.1s |
| Knob setting accuracy | ±1V |
| Rated insulation voltage | 415V |
| IP Class | IP20 |
| Class of pollution | 3 |
| Electrical Life | 105 |
| Mechanical life | 106 |
| Altitude | ≤2000m |
| Allowable relative humidity | ≤50%(40ºC)(No condensation) |
| DIN rail Standard | Width 35mm(IEC/EN60715) |
