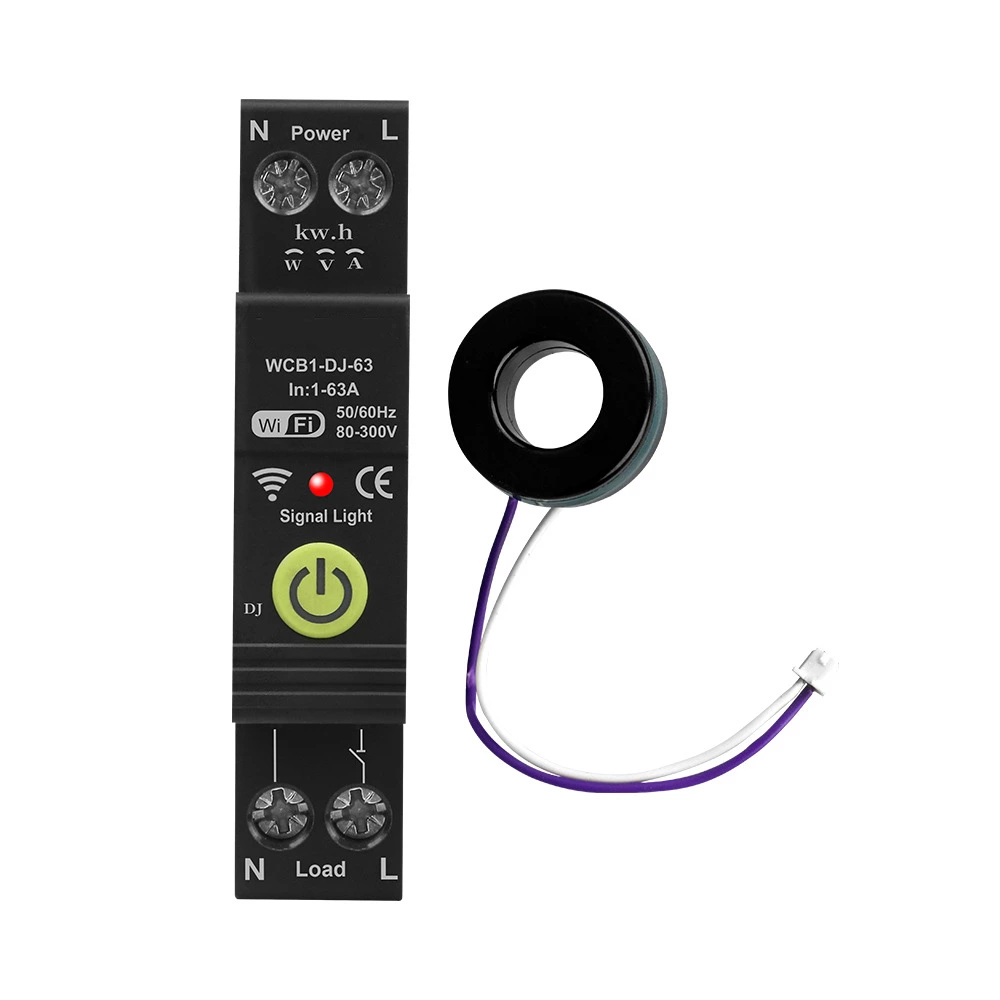

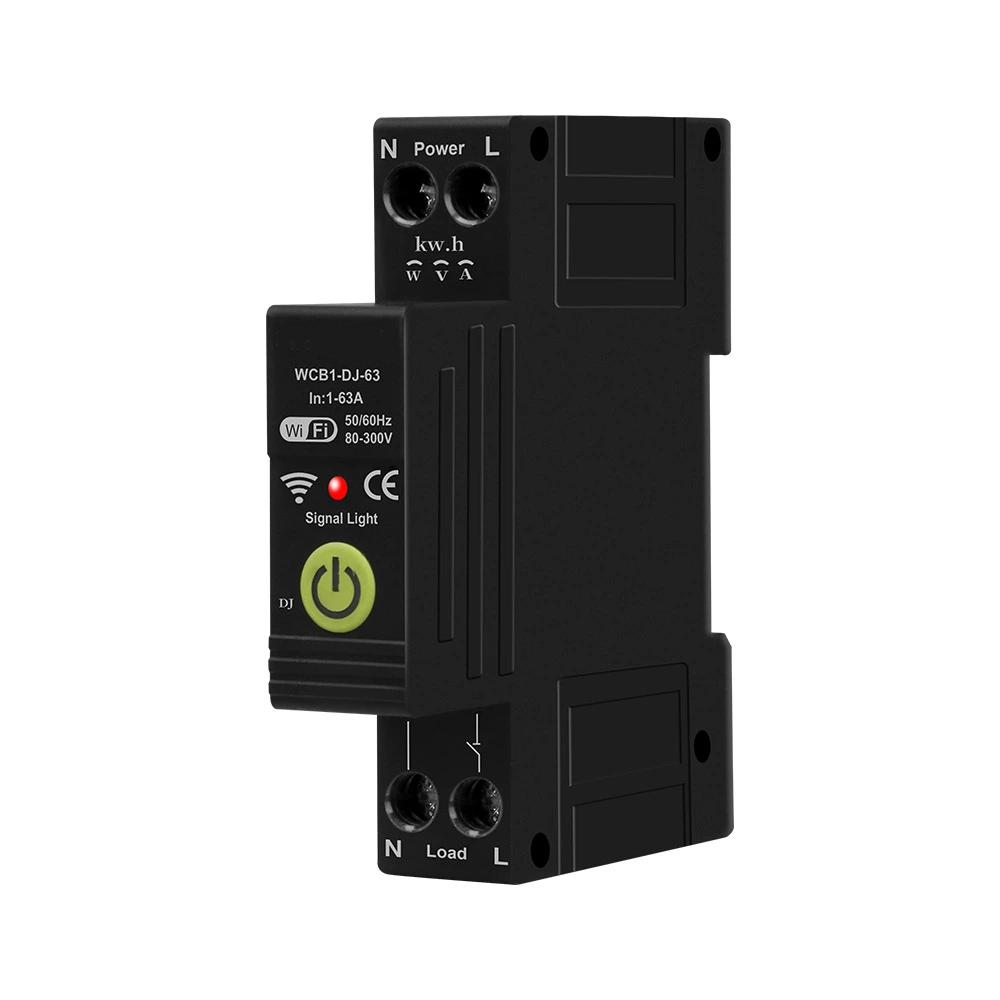

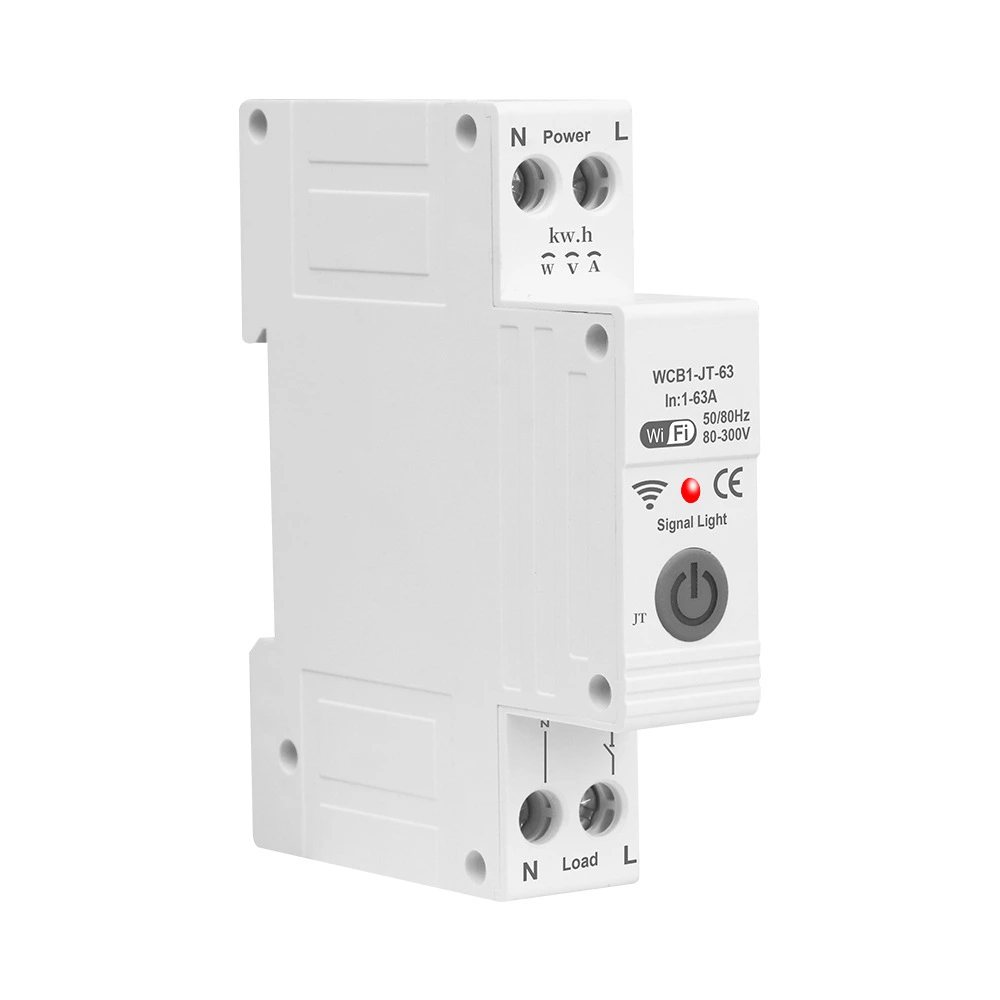

Tuya WiFi Circuit Breaker
- Customization:
- Available
- Function:
- Mini/Miniature Circuit Breaker
- Type:
- Circuit Breaker
- Installation:
- Insert
- Breaking Capacity:
- Low Voltage Circuit Breakers
- Poles Number:
- 2
- Arc-extinguishing Medium:
- Air
- Operation:
- Manual Type
Product Features
1. In complicance with IEC/EN62898-1
2. With indicator function in the contact position
3. Maximum connecting ability of 25mm²
4. Overload and short circuit protection
| Item | DC Mini Circuit Breake | |||
| Pole | 1P | 2P | 3P | 4P |
| Voltage | 250V DC | 550V DC | 750V DC | 1000V DC |
| Current | 6A/10A/16A/20A25A/32A/40A/50A/63A | |||
| Standard | IEC/EN60947-2 | |||
| Breaking Capacity | 6KA | |||
| Characteristic Curve | B/C/D | |||
| Working Temperature | (-5ºCto40ºC) | |||
| Protection Degree | IP20 | |||
| Eiectrical life | More than 8000 time | |||
| Mechanical life | More than 2000 time | |||
| Accessory | YES | |||
| Installation Altitude | <2000M | |||
| Wiring capacity(mm²) | In<=32A,1∽25mm²,1>=40A,10∽35mm² | |||
| Relative humidity | <=95% | |||
| Installation category | Class 3 | |||
| Installation | Standard 35mm DIN rail | |||
