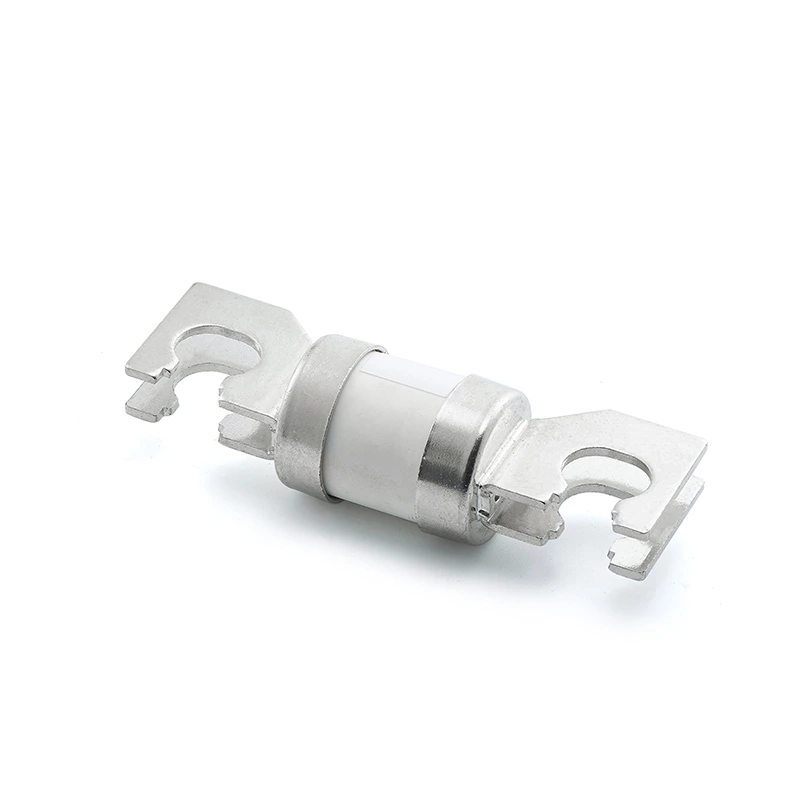

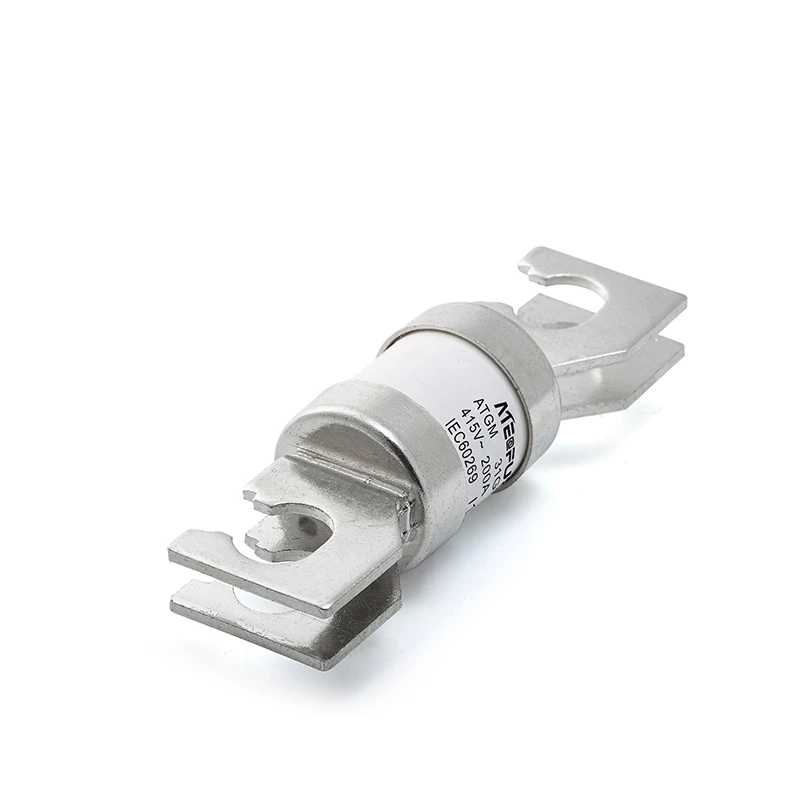

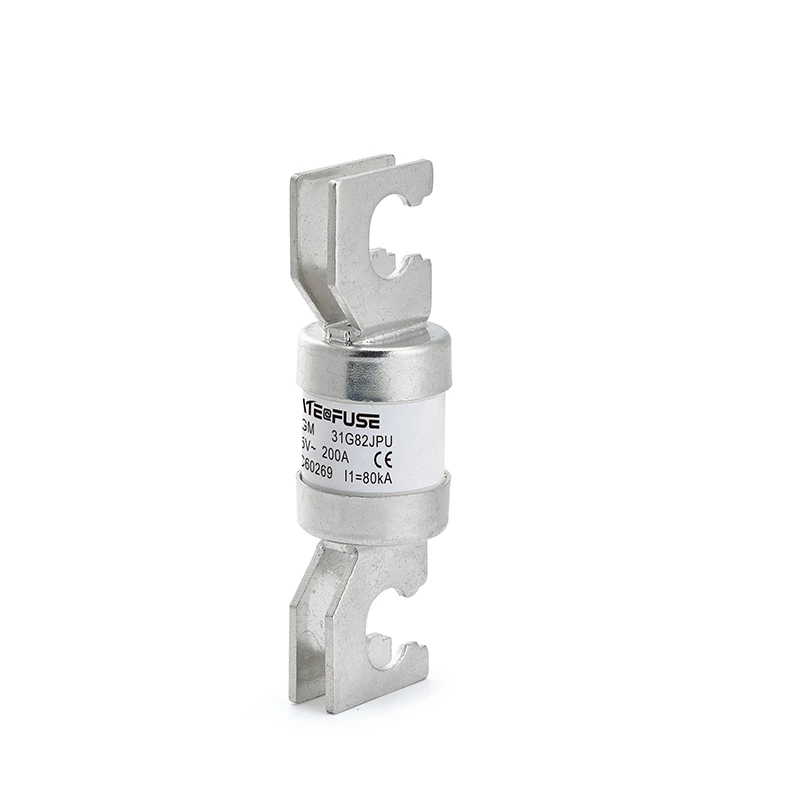

J Type HRC Fuse Link

Customization:
Available
Type:
Current Fuse
Shape:
Insert
Rated Voltage:
1000V/1500V DC
Breaking Capacity:
High
Fusing Speed:
F
Time Constant:
1-3ms
Mounting Method:
DIN Rail Installation

Product Features

1.Fuse Base Adapted melt link size: 10x38/10*85/14*85/10*51/14*51/22*58mm etc.FUSE, DC FUSE,AC FUSE,

2. Class of Operation: gG/aR.  FUSE LINK, FUSE CORE,FUSE HOLDER,AC FUSE LINK,DC FUSE LINK

3. Standard:  IEC 60269-6  UL248-19.IEC60947 DC FUSE BASE  AC  FUSE BASE,AC FUSE CORE, E

4. Breaking Capacity:  50/100kA.AC FUSE HOLDER,DC FUSE HOLDER

5.Time Constant:  1-3ms F

Electrical Features
Type GDPV-32
Test standards IEC60947
Rated voltage Ue 1000V DC
Rated breaking capacity 20kA
Class of Operation gPV
Time Constant 1-3ms
Rated current Max: 32A
Fuse Size 10*38mm
Fuse Type GD-10PV
