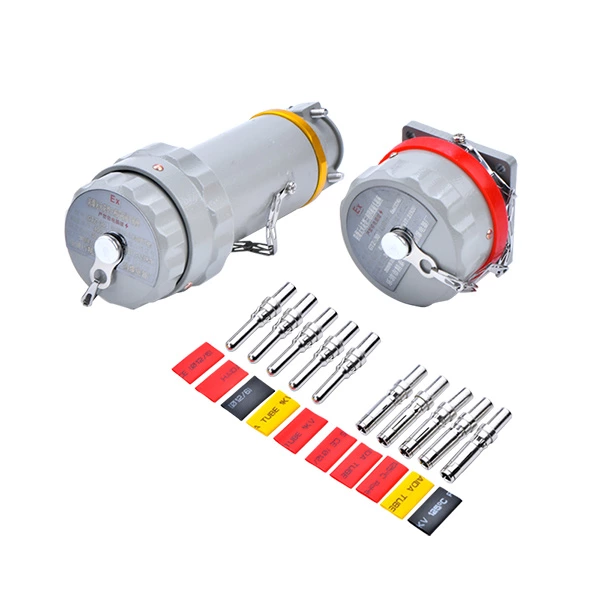

GTZ-30A / Fixed Type / 3/4/5 Core / Non Sparking Explosion-proof Plug And Socket

Customization:
Available
Application:
Power Supply
Standard:
European Standard, American Standard, British Standard, Germany Standard, South African Standard, Italian Standard
Function:
AC Plug
IP Rating:
IP65
Interface Type:
1p+N, 3p+N, 1p+N+E, 3p+N+PE, Wf2
Degres of Protection:
IP65
Cable Diameter:
10mm~30mm

Applications

1.A wide range of hazardous areas where ignitable vapors, dust, moisture and corrosive elements are present

2.Areas requiring frequent on-and-off of lights or power cycling- no warm up time required

3.Areas with high energy costs

4.Typical applications include:

Oil and gas industries

Chemical, petrochemical

Pharmaceutical industries

Pulp and Paper

Waste and sewage treatment

Type Plug & Receptacle
Ex rate Ex d e IIC T6 Gb
Rated Current [A] 16A 32A 63A
Rated voltage 220/380VAC
Degree of protection IP65
Entries M25*1.5 (suitable for Φ8mm-Φ17mm cable) M40*1.5 (suitable for Φ13mm-Φ27mm cable) M40*1.5 (suitable for Φ13mm-Φ27mm cable)
The cable for plug Φ8mm-Φ19mm Φ12mm-Φ28mm Φ12mm-Φ28mm
