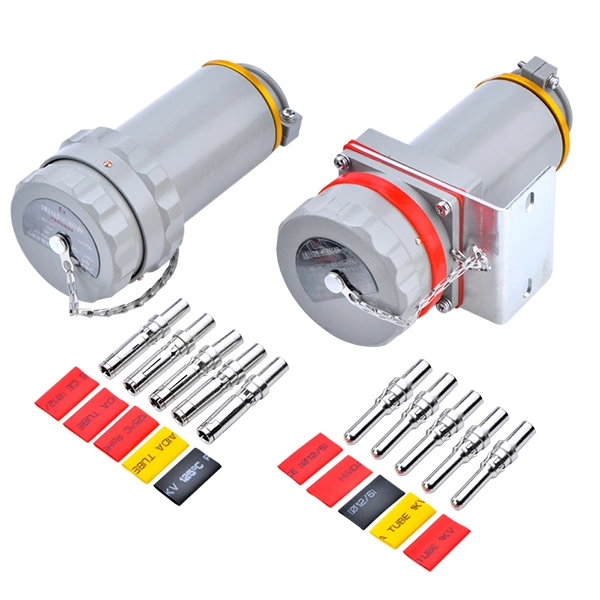

GTZ-200 / Mobile Type / 3/4/5 Core / Non Sparking Explosion-proof Plug And Socket
- Customization:
- Available
- Application:
- Power Supply
- Standard:
- European Standard, American Standard, British Standard, Germany Standard, South African Standard, Italian Standard
- Function:
- AC Plug
- IP Rating:
- IP65
- Interface Type:
- 1p+N, 3p+N, 1p+N+E, 3p+N+PE, Wf2
- Degres of Protection:
- IP65
- Cable Diameter:
- 10mm~30mm
Applications
1.A wide range of hazardous areas where ignitable vapors, dust, moisture and corrosive elements are present
2.Areas requiring frequent on-and-off of lights or power cycling- no warm up time required
3.Areas with high energy costs
4.Typical applications include:
Oil and gas industries
Chemical, petrochemical
Pharmaceutical industries
Pulp and Paper
Waste and sewage treatment
Type | Plug & Receptacle | ||
Ex rate | Ex d e IIC T6 Gb | ||
Rated Current [A] | 16A | 32A | 63A |
Rated voltage | 220/380VAC | ||
Degree of protection | IP65 | ||
Entries | M25*1.5 (suitable for Φ8mm-Φ17mm cable) | M40*1.5 (suitable for Φ13mm-Φ27mm cable) | M40*1.5 (suitable for Φ13mm-Φ27mm cable) |
The cable for plug | Φ8mm-Φ19mm | Φ12mm-Φ28mm | Φ12mm-Φ28mm |
