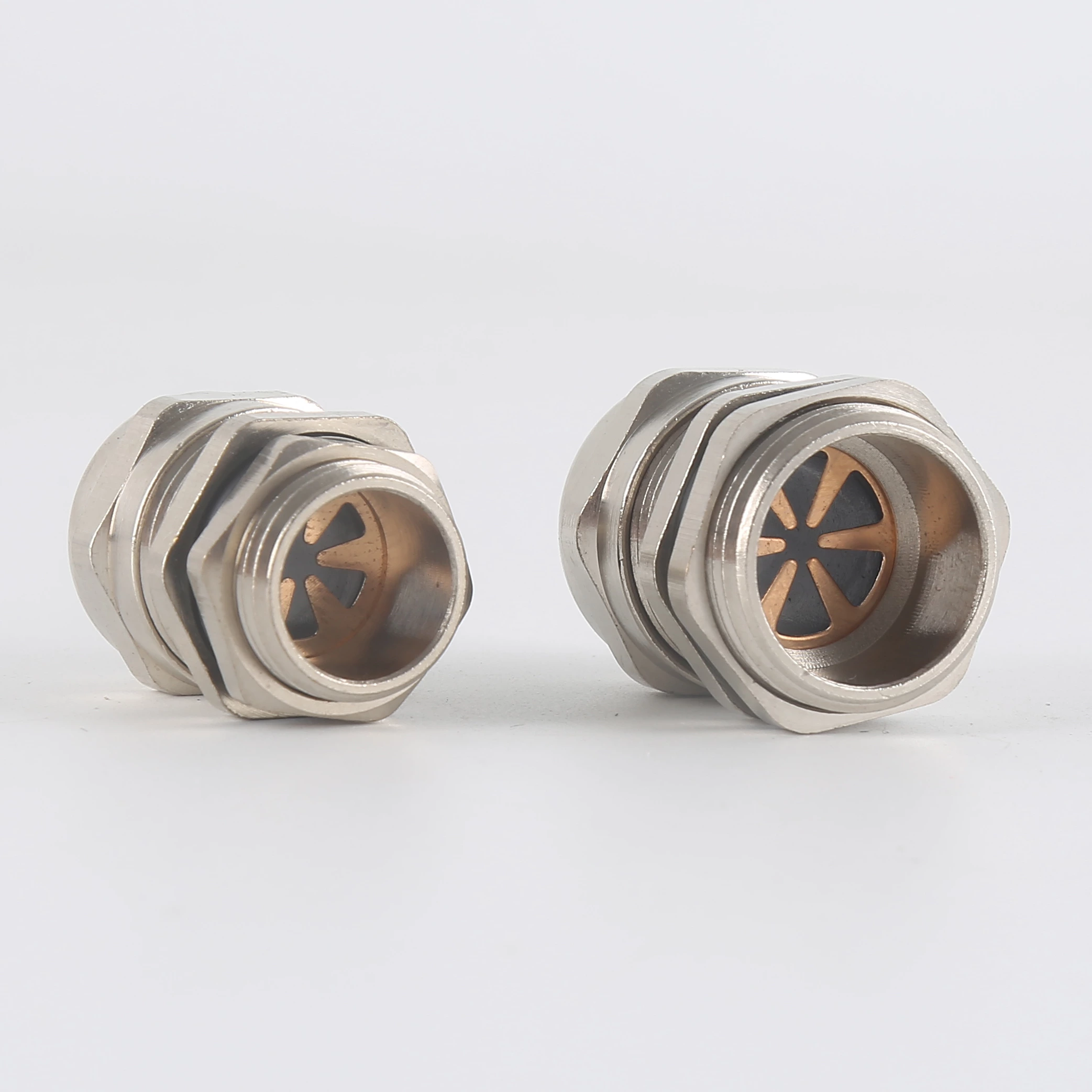

EMC Cable Gland
- Customization:
- Available
- Surface Treatment:
- Nickel Plated
- Working Temperature:
- -40ºC~+100ºC
- Type:
- Straight Head
- Cable Size:
- 6-12 mm
- Thread Length:
- 10 mm
- Thread:
- M20X1.5
- Thread O.D:
- 20 mm
1. All metal parts are made of stainless steel material
2. Nylon claw to hold cables tightly
3. Made of stainless steel material to increase corrosion resistance and durability
4. Many different specifications are available
5. Many different types are waiting for your choice
6. OEM and ODM are no problem
| Item Name | Metal Breathable Vent Plug |
| Material | Brass nickel plated or Aluminum material |
| Protection | The deth of waterproof to 3-5M, the o-ring up to IP68 waterproof level; Anti-vibration and shock tested IEC-60077-1999, according with ROHS |
| Temperature | -40ºC to 120ºC, short time up to 150ºC |
| Certificate | ROHS, CE |
| Airflow | 325ml/min (0.07 bar) |
| Water entry pressure | >5 bar |
| Function | 1. Waterproof and dustproof 2. Vent, protect the inside equipment operation normally and long in the serions environment 3. Heat dissipation, replace or assist in heat sink to lower inside temperature 4. Prolong the product's service life |
| Item No. | Thread | Clamping Range (mm) |
Thread O.D (mm) |
Thread Length (mm) |
|
| Straight | 90/90 Degree | ||||
| M12-3 | CG90-M12-3 | M12X1.5 | 3.0-6.5 | 12.00 | 9 |
| M16-4 | CG90-M16-4 | M16X1.5 | 4.0-8.0 | 16.00 | 9 |
| M18-5 | CG90-M18-5 | M18X1.5 | 5.0-10.0 | 18.00 | 10 |
| M20-6 | CG90-M20-6 | M20X1.5 | 6.0-12.0 | 20.00 | 10 |
| M20-10 | - | M20X1.5 | 10.0-14.0 | 20.00 | 10 |
| M22-10 | CG90-M22-10 | M22X1.5 | 10.0-14.0 | 22.00 | 10 |
| M25-10 | - | M25X1.5 | 10.0-14.0 | 25.00 | 12 |
| M25-13 | CG90-M25-13 | M25X1.5 | 13.0-18.0 | 25.00 | 12 |
| M27-13 | CG90-M27-13 | M27X1.5 | 13.0-18.0 | 27.00 | 12 |
| M32-17 | CG90-M32-17 | M32X1.5 | 17.0-25.0 | 32.00 | 14 |
| M40-24 | CG90-M40-24 | M40X1.5 | 24.0-32.0 | 40.00 | 14 |
| M50-31 | CG90-M50-31 | M50X1.5 | 31.0-38.0 | 50.00 | 14 |
| M60-37 | - | M60X1.5 | 37.0-44.0 | 60.00 | 15 |
| M63-37 | - | M63X1.5 | 37.0-44.0 | 63.00 | 15 |
