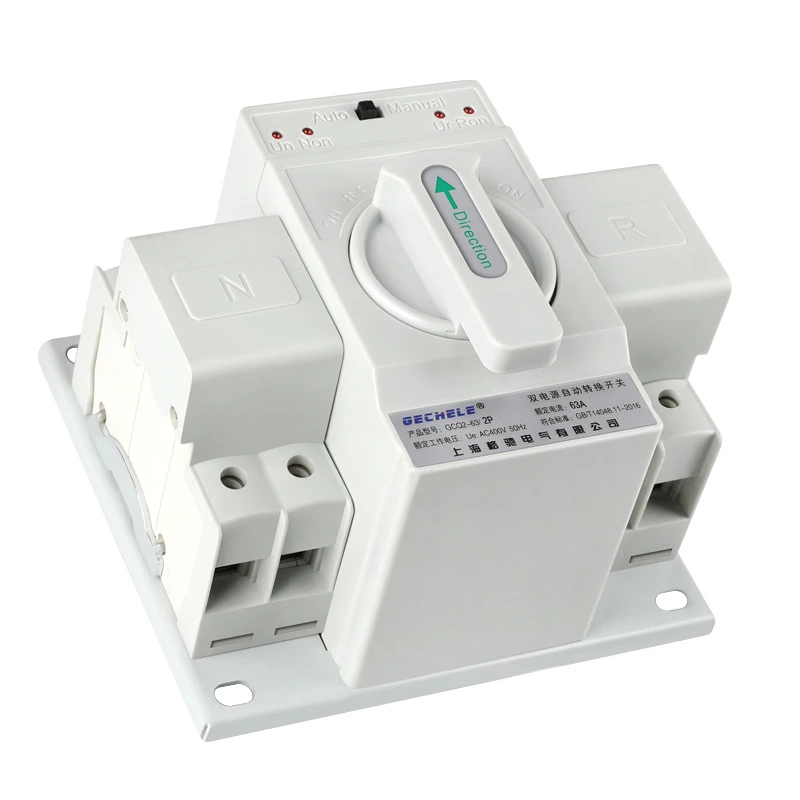

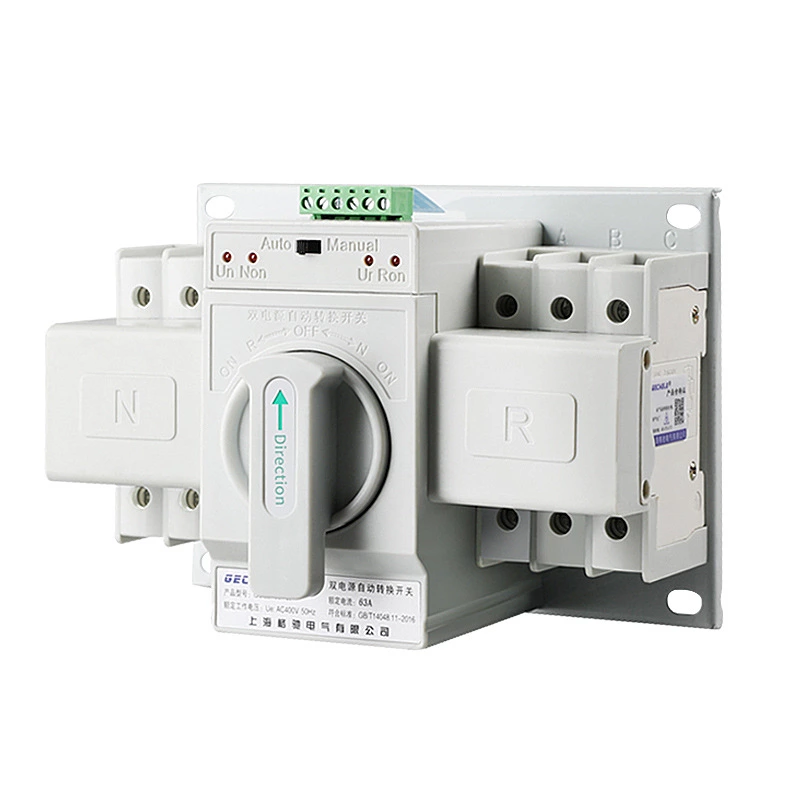

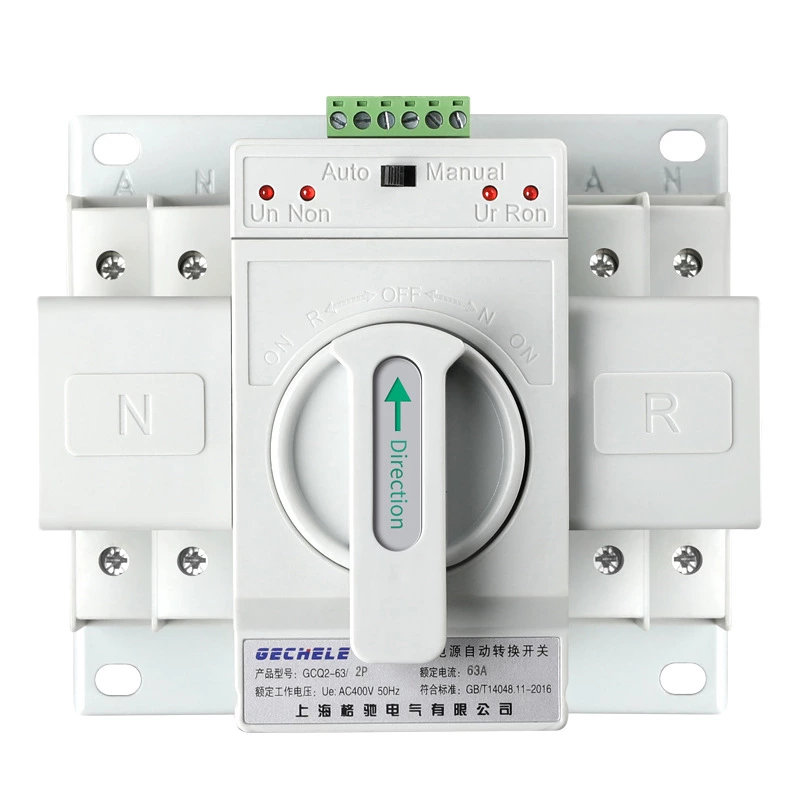

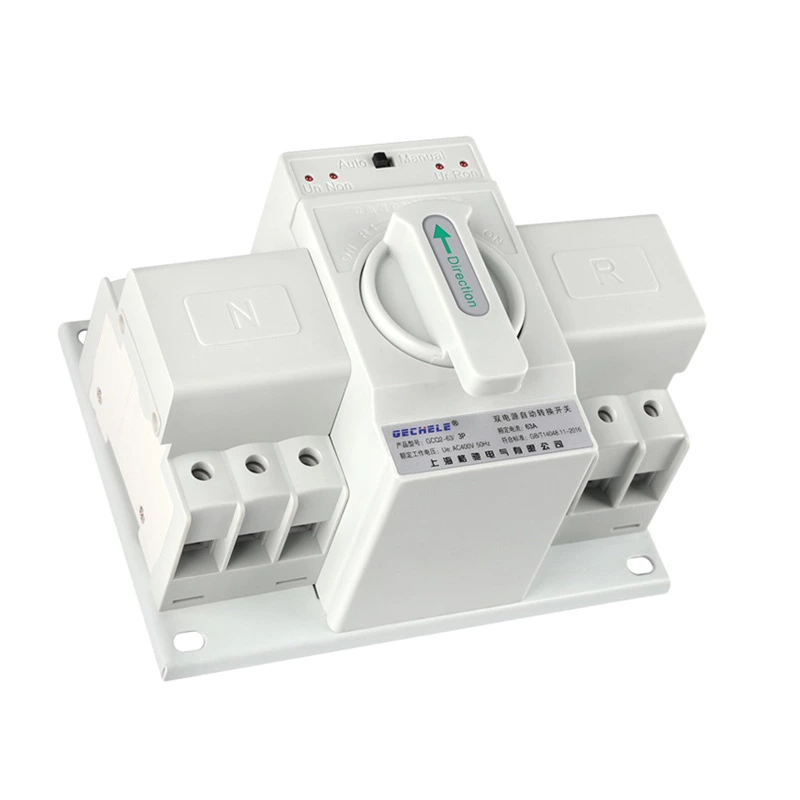

Dual Power Automatic Transfer Switch
- Material:
- Plastic
- Type:
- Integrated automatic transfer switch
- Operation Voltage:
- 187~257V Normally 220V/230V 50/60Hz
- Rated Working Current:
- 10A,16A,20A,32A,40A,50A,63A,80A,100A
- Output type:
- Dual
- Transfer Time:
- Less Than or Equal to 3s
- Changeover Time:
- 1 Second
- Rated Short Circuit Breaking Capacity:
- 3ka
Peculiarity
In the event of a common power failure or power failure, through this, it is automatically put into the backup power supply, so that the equipment can still operate normally.
Convenient installation
Adopt two-in -one-out connection mode to save time and cost greatly
Multiple modes
Diversified control modes,supporting manual,automatic and remote modes
Opening output port
Passive signal output,built-in opening signal output port for standing use,and signal indicator can be connected
| Item | Specification | PCS/CTN | Item Size(CM) | Carton Size(CM) | K.W.(KG) | N.W.(KG) |
| 5-100-4P | 16-100A | 6 | 25*15*14 | 38*30*36 | 25 | 24 |
| 5-160-4P | 125-160A | 4 | 45*36.5*48 | 45*36.5*48 | 25.2 | 24.2 |
| 5-250-4P | 180-250A | 2 | 46.3*44.2*29.5 | 46.3*44.2*29.5 | 19.25 | 18.25 |
| 5-400-4P | 315-400A | 1 | 50.5*30.5*33 | 50.5*30.5*33 | 17.85 | 16.85 |
| 5-630-4P | 500-630A | 1 | 50.5*30.5*33 | 50.5*30.5*33 | 18.75 | 17.75 |
| 5-1000-4P | 800-1000A | 1 | 71*40*37 | 71*40*37 | 46.5 | 44.5 |
| 5-1250-4P | 1250A | 1 | 71*40*37 | 71*40*37 | 50 | 48 |
| 5-1600-4P | 1600A | 1 | 71*40*37 | 71*40*37 | 55 | 53 |
| 5-2000-4P | 2000A | 1 | 71*50*60 | 71*50*60 | 91 | 89 |
| 5-2500-4P | 2500A | 1 | 71*50*60 | 71*50*60 | 101 | 99 |
| 5-3200-4P | 3200A | 1 | 71*50*60 | 71*50*60 | 111 | 102 |
